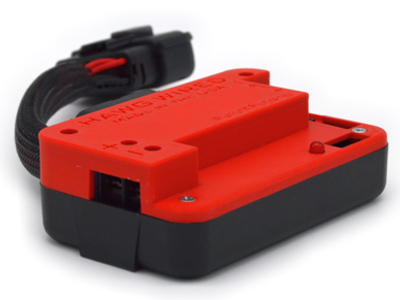

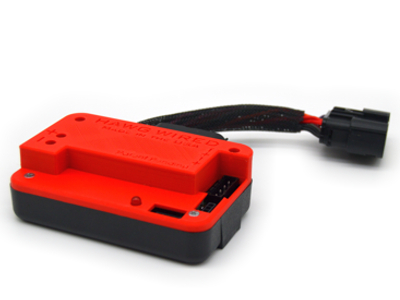

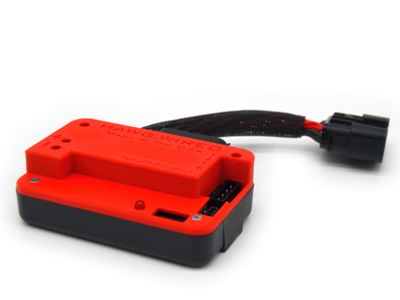

The DCM1 for 2024+ (non-CVO) Harley audio systems offer a true plug and play solution for your audio upgrade. No need for power and ground wires, line converters, resistors or cutting into your bike. The DCM1 plugs directly into the OE harness keeping your stock system in full operating state while passing through necessary A2B signals and power. The DCM1 senses current draw at the factory amp to enable system power. With an on-board pre-programmed DSP, tuned specifically to optimize power and sound quality for 2024+ bikes, and a 6-watt Class-D amplifier for high-level output, the DCM1 makes the installation of a high-powered system easy and clean. The DCM1 is Patent Pending.

Product highlights:
-100% Plug and Play to 2024+ factory connector (non-CVO)
-Current sensing power-on detection, no remote wire required
-Pre-tuned for curve correction and optimization on 2024+ Skyline radios
-2-Ch, 6-Watt, Class-D, high level speaker outputs for connection to amplifiers

Other Features:
-12v power and ground terminals for Direct Connection of amplifiers. Circuit limited, 35 Amp, Fused
-Factory connections eliminate need for extra wires or terminations
-Rear speaker wire connector (high-level output to drive secondary amp)
-System status and clipping LED for quick and proper setup
Dimensions: 4″x2.5″x1.5″,  6″ harness
Warranty: 1 year

What’s in the box:
1x DCM1 Module
1x 4-pin Mini-Fit input cables
Installation Guide
Mounting Hook/Loop pad
Owner’s manual
